Name: TP90H180PS
Brand: Transphorm
SKU: TP90H180PS
Price: 11.40 USD
Availability: InStock

REF: TP90H180PS Transphorm

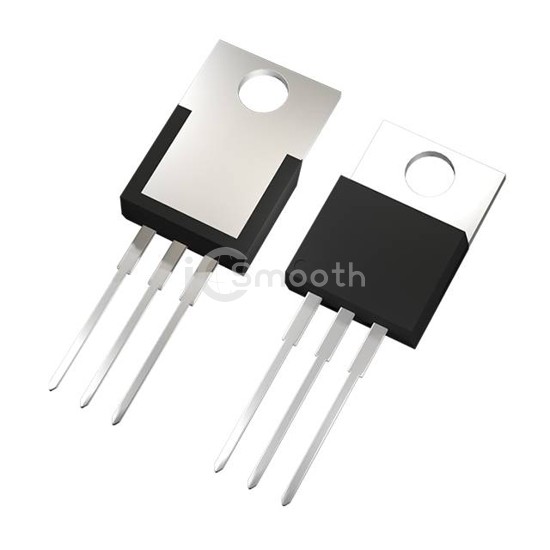

TP90H180PS

GANFET N-CH 900V 15A TO220AB

TP90H180PS is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 900V 15A TO220AB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 189

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	GaNFET (Cascode Gallium Nitride FET)
Drain to Source Voltage (Vdss)	900 V
Current - Continuous Drain (Id) @ 25°C	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	205mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.6V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 8 V

Vgs (Max)	±18V
Input Capacitance (Ciss) (Max) @ Vds	780 pF @ 600 V
FET Feature	-
Power Dissipation (Max)	78W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB
Package / Case	TO-220-3
