Name: TP90H050WS
Brand: Transphorm
SKU: TP90H050WS
Price: 20.03 USD
Availability: InStock

REF: TP90H050WS Transphorm

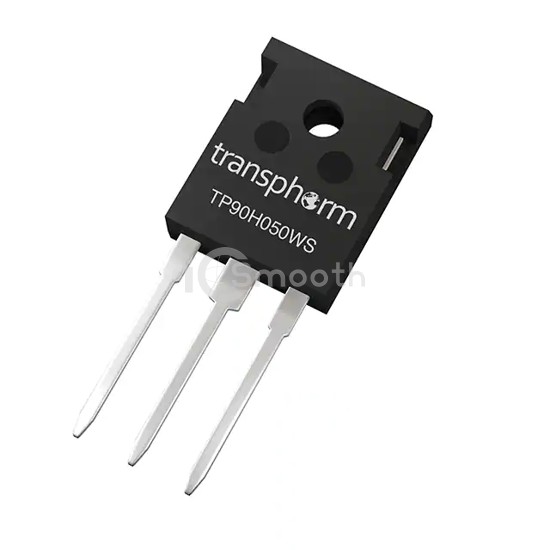

TP90H050WS

GANFET N-CH 900V 34A TO247-3

TP90H050WS is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 900V 34A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case TO-247-3.

Datasheet Request a Quote

In Stock: 192

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	GaNFET (Cascode Gallium Nitride FET)
Drain to Source Voltage (Vdss)	900 V
Current - Continuous Drain (Id) @ 25°C	34A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	63mOhm @ 22A, 10V
Vgs(th) (Max) @ Id	4.4V @ 700µA
Gate Charge (Qg) (Max) @ Vgs	17.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	980 pF @ 600 V
FET Feature	-
Power Dissipation (Max)	119W (Tc)
Operating Temperature	-55°C ~ 150°C
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
