TP65H300G4LSG

In Stock: 293

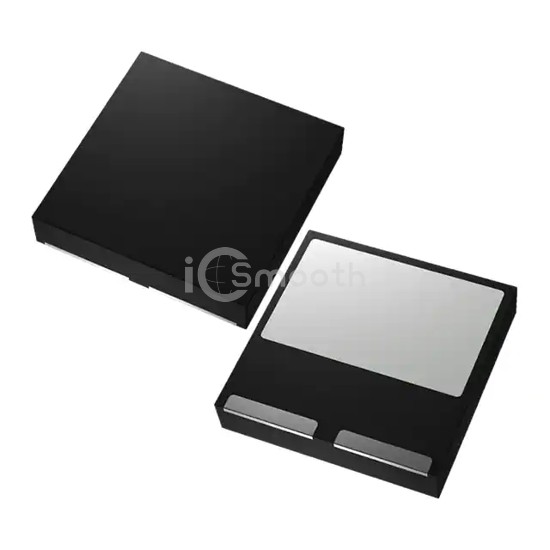

TP65H300G4LSG - Transphorm - Transistors - FETs, MOSFETs - Single
REF: TP65H300G4LSG Transphorm
TP65H300G4LSG

Transphorm

GANFET N-CH 650V 6.5A 3PQFN

TP65H300G4LSG is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 650V 6.5A 3PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-PowerDFN.

Datasheet Request a Quote

In Stock: 293

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)8V
Rds On (Max) @ Id, Vgs312mOhm @ 5A, 8V
Vgs(th) (Max) @ Id2.6V @ 500µA
Gate Charge (Qg) (Max) @ Vgs9.6 nC @ 8 V
Vgs (Max)±18V
Input Capacitance (Ciss) (Max) @ Vds760 pF @ 400 V
FET Feature-
Power Dissipation (Max)21W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-PQFN (8x8)
Package / Case3-PowerDFN
