Name: TP65H070LSG
Brand: Transphorm
SKU: TP65H070LSG
Availability: InStock

REF: TP65H070LSG Transphorm

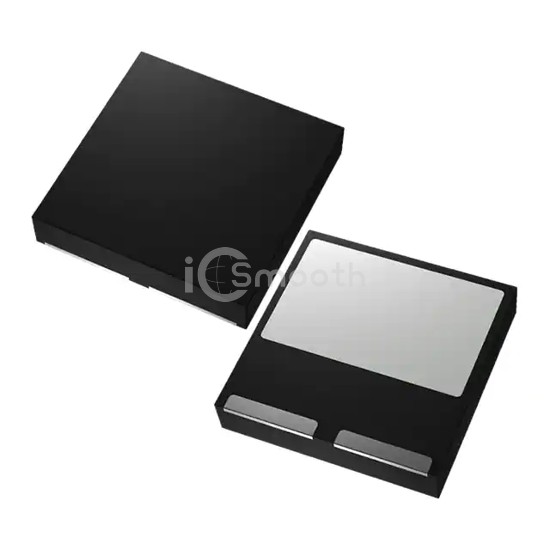

TP65H070LSG

GANFET N-CH 650V 25A 3PQFN

TP65H070LSG is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 650V 25A 3PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-PowerDFN.

Datasheet Request a Quote

In Stock: 5,275

Specifications

17 parameters

Product Status	Discontinued at Digi-Key
FET Type	N-Channel
Technology	GaNFET (Cascode Gallium Nitride FET)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	25A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	85mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	4.8V @ 700µA
Gate Charge (Qg) (Max) @ Vgs	9.3 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	600 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	96W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-PQFN (8x8)
Package / Case	3-PowerDFN
