Name: TP65H050WS
Brand: Transphorm
SKU: TP65H050WS
Price: 19.24 USD
Availability: InStock

REF: TP65H050WS Transphorm

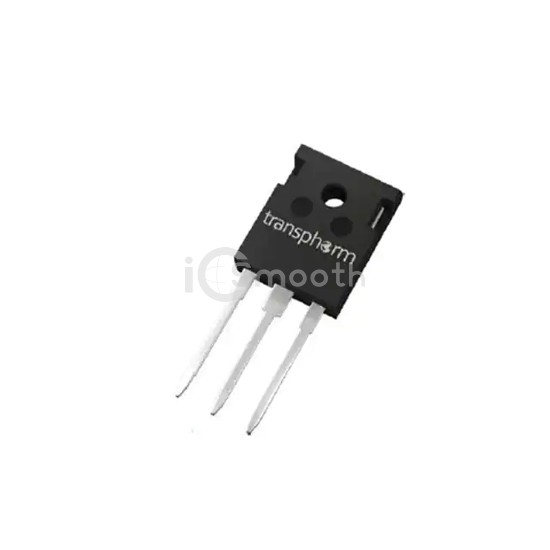

TP65H050WS

GANFET N-CH 650V 34A TO247-3

TP65H050WS is a Transistors - FETs, MOSFETs - Single manufactured by Transphorm. GANFET N-CH 650V 34A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 250

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	GaNFET (Cascode Gallium Nitride FET)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	34A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	12V
Rds On (Max) @ Id, Vgs	60mOhm @ 22A, 10V
Vgs(th) (Max) @ Id	4.8V @ 700µA
Gate Charge (Qg) (Max) @ Vgs	24 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1000 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	119W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
