Name: XPN6R706NC,L1XHQ
Brand: Toshiba Semiconductor and Storage
SKU: XPN6R706NC,L1XHQ
Price: 1.49 USD
Availability: InStock

REF: XPN6R706NC,L1XHQ Toshiba Semiconductor and Storage

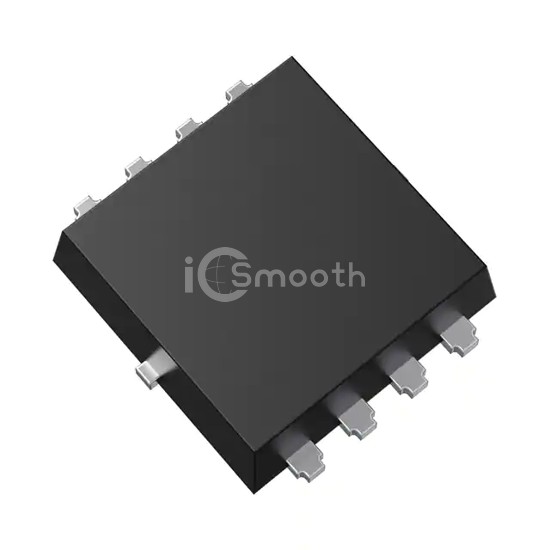

XPN6R706NC,L1XHQ

Toshiba Semiconductor and Storage

MOSFET N-CH 60V 40A 8TSON

XPN6R706NC,L1XHQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 60V 40A 8TSON. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 6,062

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	40A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 300µA
Gate Charge (Qg) (Max) @ Vgs	35 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2000 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	840mW (Ta), 100W (Tc)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	8-TSON Advance-WF (3.1x3.1)
Package / Case	8-PowerVDFN
