Name: XPN12006NC,L1XHQ
Brand: Toshiba Semiconductor and Storage
SKU: XPN12006NC,L1XHQ
Price: 1.29 USD
Availability: InStock

REF: XPN12006NC,L1XHQ Toshiba Semiconductor and Storage

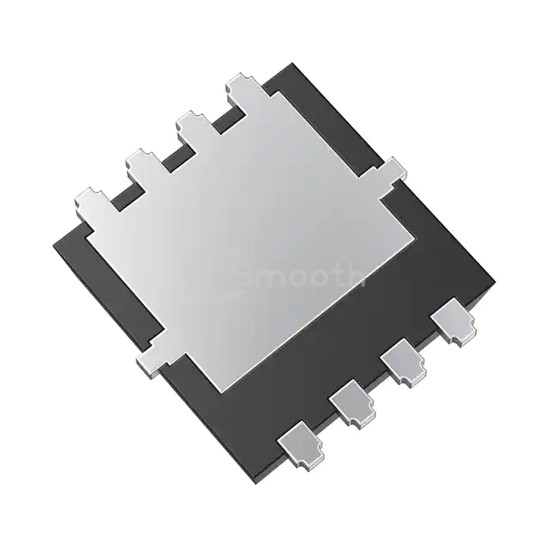

XPN12006NC,L1XHQ

Toshiba Semiconductor and Storage

MOSFET N-CH 60V 20A 8TSON

XPN12006NC,L1XHQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 60V 20A 8TSON. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C, package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 8,559

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	20A
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	12mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 0.2mA
Gate Charge (Qg) (Max) @ Vgs	23 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1100 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	65W (Tc)
Operating Temperature	-55°C ~ 175°C
Mounting Type	Surface Mount
Supplier Device Package	8-TSON Advance-WF (3.1x3.1)
Package / Case	8-PowerVDFN
