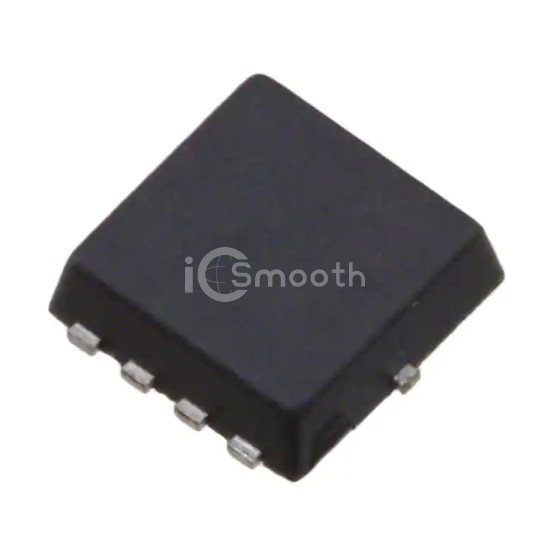

Name: TPN3300ANH,LQ
Brand: Toshiba Semiconductor and Storage
SKU: TPN3300ANH,LQ
Price: 0.97 USD
Availability: InStock

REF: TPN3300ANH,LQ Toshiba Semiconductor and Storage

TPN3300ANH,LQ

Toshiba Semiconductor and Storage

MOSFET N-CH 100V 9.4A 8TSON

TPN3300ANH,LQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 100V 9.4A 8TSON. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 5,342

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	9.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	33mOhm @ 4.7A, 10V
Vgs(th) (Max) @ Id	4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	880 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	700mW (Ta), 27W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-TSON Advance (3.3x3.3)
Package / Case	8-PowerVDFN
