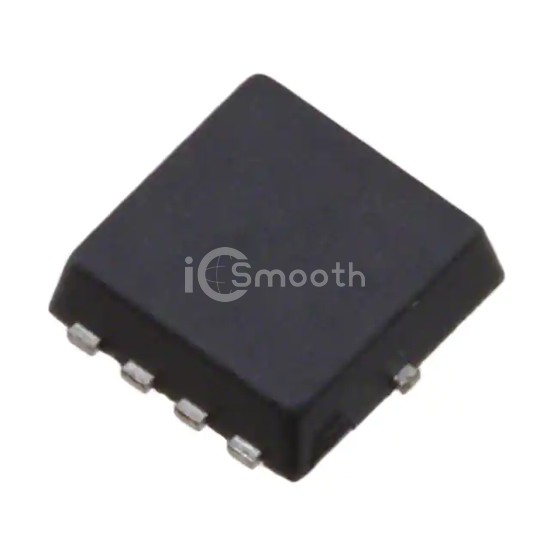

Name: TPN30008NH,LQ
Brand: Toshiba Semiconductor and Storage
SKU: TPN30008NH,LQ
Price: 0.97 USD
Availability: InStock

REF: TPN30008NH,LQ Toshiba Semiconductor and Storage

TPN30008NH,LQ

Toshiba Semiconductor and Storage

MOSFET N-CH 80V 9.6A 8TSON

TPN30008NH,LQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 80V 9.6A 8TSON. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 8,151

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	9.6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	30mOhm @ 4.8A, 10V
Vgs(th) (Max) @ Id	4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	920 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	700mW (Ta), 27W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-TSON Advance (3.3x3.3)
Package / Case	8-PowerVDFN
