Name: TPN2R503NC,L1Q
Brand: Toshiba Semiconductor and Storage
SKU: TPN2R503NC,L1Q
Availability: InStock

REF: TPN2R503NC,L1Q Toshiba Semiconductor and Storage

TPN2R503NC,L1Q

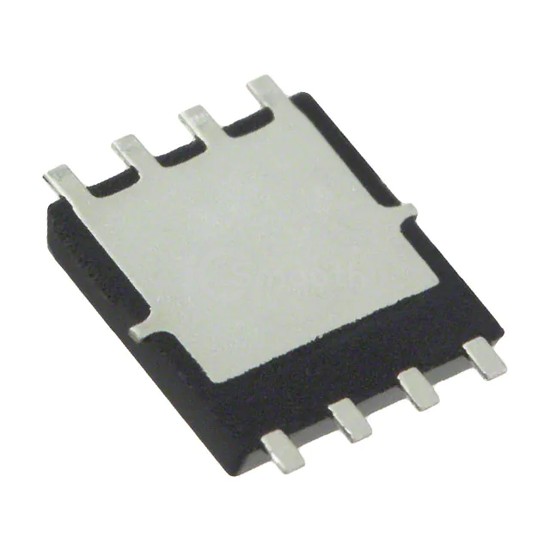

MOSFET N CH 30V 40A 8TSON-ADV

TPN2R503NC,L1Q is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N CH 30V 40A 8TSON-ADV. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 5,634

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	40A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	40 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2230 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	700mW (Ta), 35W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-TSON Advance (3.1x3.1)
Package / Case	8-PowerVDFN
