Name: TPN14006NH,L1Q
Brand: Toshiba Semiconductor and Storage
SKU: TPN14006NH,L1Q
Price: 0.35 USD
Availability: InStock

REF: TPN14006NH,L1Q Toshiba Semiconductor and Storage

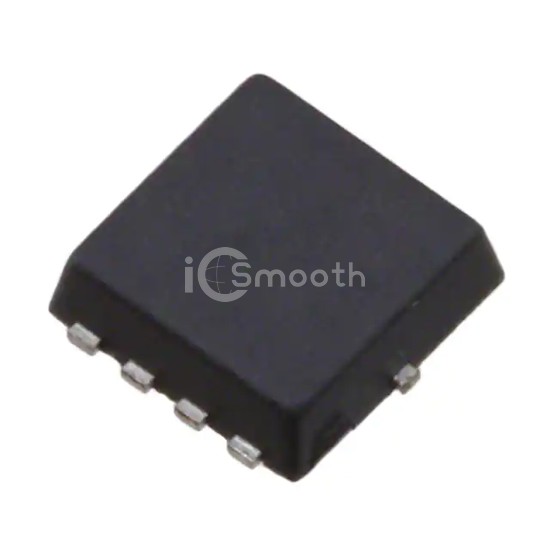

TPN14006NH,L1Q

Toshiba Semiconductor and Storage

MOSFET N CH 60V 13A 8TSON-ADV

TPN14006NH,L1Q is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N CH 60V 13A 8TSON-ADV. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 2,070

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	13A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	6.5V, 10V
Rds On (Max) @ Id, Vgs	14mOhm @ 6.5A, 10V
Vgs(th) (Max) @ Id	4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1300 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	700mW (Ta), 30W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-TSON Advance (3.1x3.1)
Package / Case	8-PowerVDFN
