Name: TPN11006PL,LQ
Brand: Toshiba Semiconductor and Storage
SKU: TPN11006PL,LQ
Price: 0.71 USD
Availability: InStock

REF: TPN11006PL,LQ Toshiba Semiconductor and Storage

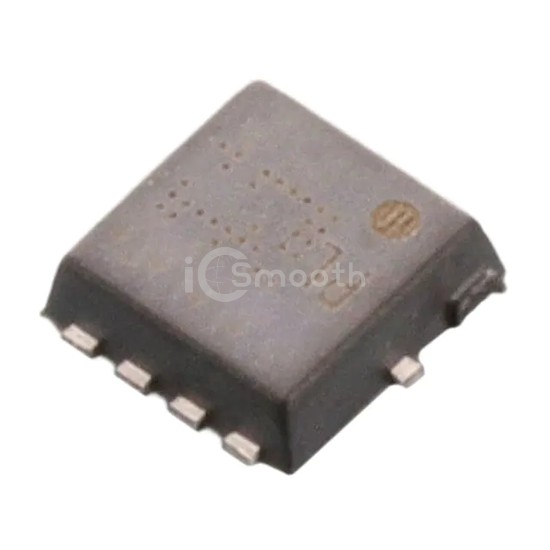

TPN11006PL,LQ

Toshiba Semiconductor and Storage

MOSFET N-CH 60V 26A 8TSON

TPN11006PL,LQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 60V 26A 8TSON. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 1,378

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	26A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	11.4mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	2.5V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1625 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	610mW (Ta), 61W (Tc)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	8-TSON Advance (3.1x3.1)
Package / Case	8-PowerVDFN
