TPH9R00CQH,LQ

In Stock: 1,318

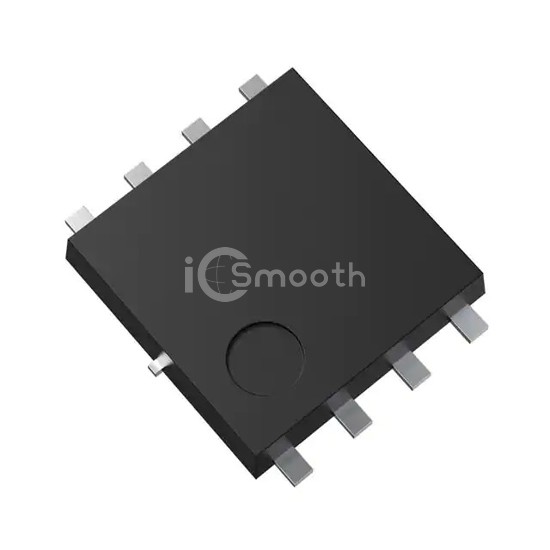

TPH9R00CQH,LQ - Toshiba Semiconductor and Storage - Transistors - FETs, MOSFETs - Single
REF: TPH9R00CQH,LQ Toshiba Semiconductor and Storage
TPH9R00CQH,LQ

Toshiba Semiconductor and Storage

UMOS10 SOP-ADV(N) 150V 9MOHM

TPH9R00CQH,LQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. UMOS10 SOP-ADV(N) 150V 9MOHM. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 1,318

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C64A (Tc)
Drive Voltage (Max Rds On, Min Rds On)8V, 10V
Rds On (Max) @ Id, Vgs9mOhm @ 32A, 10V
Vgs(th) (Max) @ Id4.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs44 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5400 pF @ 75 V
FET Feature-
Power Dissipation (Max)960mW (Ta), 210W (Tc)
Operating Temperature175°C
Mounting TypeSurface Mount
Supplier Device Package8-SOP Advance (5x5)
Package / Case8-PowerVDFN
