TPCP8005-H(TE85L,F

In Stock: 3,663

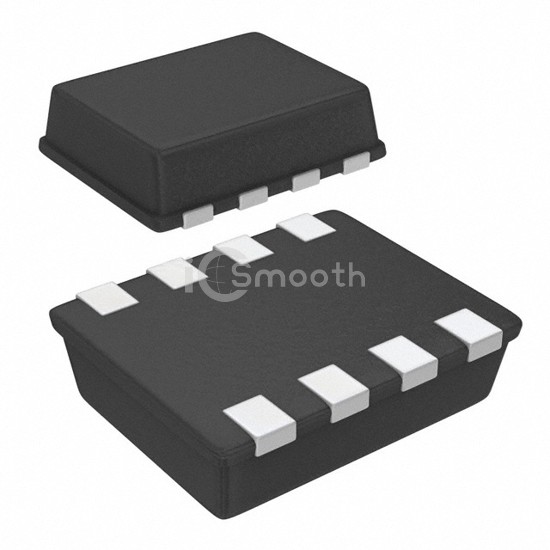

TPCP8005-H(TE85L,F - Toshiba Semiconductor and Storage - Transistors - FETs, MOSFETs - Single
REF: TPCP8005-H(TE85L,F Toshiba Semiconductor and Storage
TPCP8005-H(TE85L,F

Toshiba Semiconductor and Storage

MOSFET N-CH 30V 11A PS-8

TPCP8005-H(TE85L,F is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 11A PS-8. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SMD, Flat Lead.

Datasheet Request a Quote

In Stock: 3,663

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs12.9mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs20 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2150 pF @ 10 V
FET Feature-
Power Dissipation (Max)840mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePS-8 (2.9x2.4)
Package / Case8-SMD, Flat Lead
