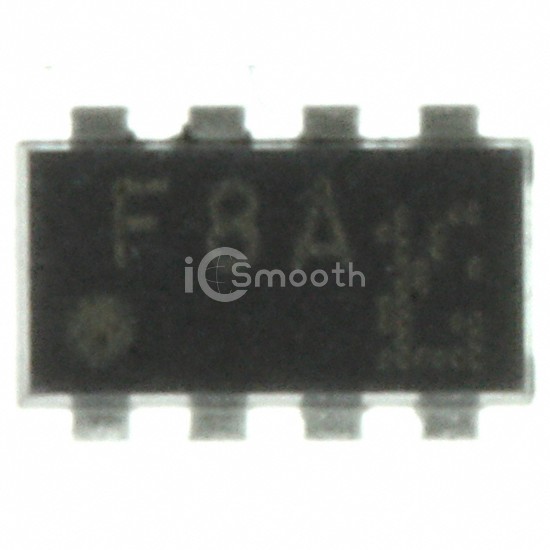

Name: TPCF8B01(TE85L,F,M
Brand: Toshiba Semiconductor and Storage
SKU: TPCF8B01(TE85L,F,M
Availability: InStock

REF: TPCF8B01(TE85L,F,M Toshiba Semiconductor and Storage

TPCF8B01(TE85L,F,M

Toshiba Semiconductor and Storage

MOSFET P-CH 20V 2.7A VS-8

TPCF8B01(TE85L,F,M is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 2.7A VS-8. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SMD, Flat Lead.

Datasheet Request a Quote

In Stock: 6,336

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	110mOhm @ 1.4A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	6 nC @ 5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	470 pF @ 10 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	330mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	VS-8 (2.9x1.5)
Package / Case	8-SMD, Flat Lead
