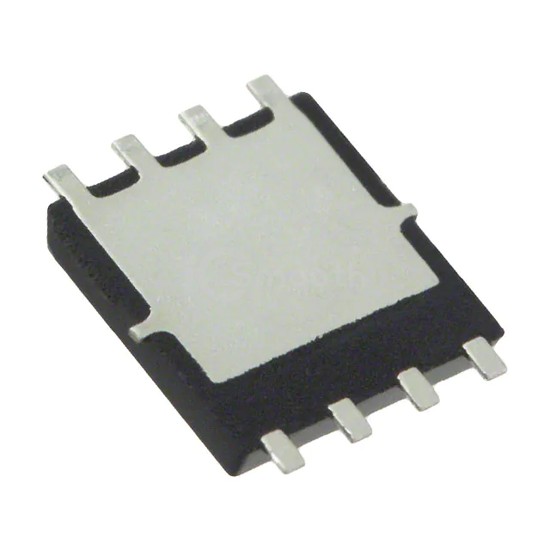

Name: TPCC8093,L1Q
Brand: Toshiba Semiconductor and Storage
SKU: TPCC8093,L1Q
Availability: InStock

REF: TPCC8093,L1Q Toshiba Semiconductor and Storage

TPCC8093,L1Q

MOSFET N-CH 20V 21A 8TSON

TPCC8093,L1Q is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 20V 21A 8TSON. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 7,517

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	21A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	5.8mOhm @ 10.5A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1860 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.9W (Ta), 30W (Tc)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	8-TSON Advance (3.1x3.1)
Package / Case	8-PowerVDFN
