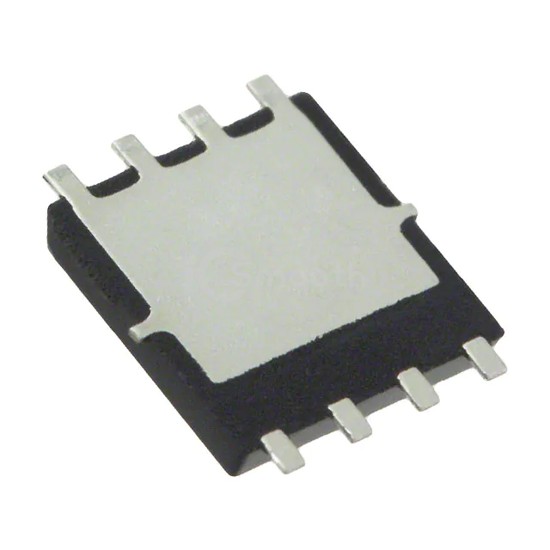

Name: TPCC8009,LQ(O
Brand: Toshiba Semiconductor and Storage
SKU: TPCC8009,LQ(O
Availability: InStock

REF: TPCC8009,LQ(O Toshiba Semiconductor and Storage

TPCC8009,LQ(O

MOSFET N-CH 30V 24A 8TSON

TPCC8009,LQ(O is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 24A 8TSON. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 2,499

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	24A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	7mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	26 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	1270 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-TSON Advance (3.1x3.1)
Package / Case	8-PowerVDFN
