Name: TPCC8008(TE12L,QM)
Brand: Toshiba Semiconductor and Storage
SKU: TPCC8008(TE12L,QM)
Availability: InStock

REF: TPCC8008(TE12L,QM) Toshiba Semiconductor and Storage

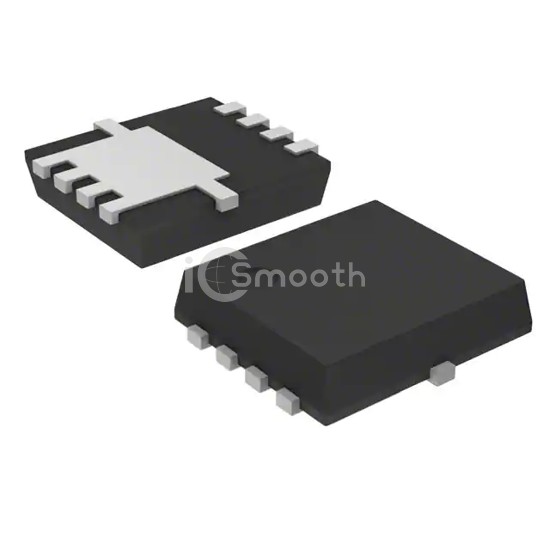

TPCC8008(TE12L,QM)

Toshiba Semiconductor and Storage

MOSFET N-CH 30V 25A 8TSON

TPCC8008(TE12L,QM) is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 25A 8TSON. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,596

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	25A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.8mOhm @ 12.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1A
Gate Charge (Qg) (Max) @ Vgs	30 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1600 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	700mW (Ta), 30W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-TSON Advance (3.3x3.3)
Package / Case	8-VDFN Exposed Pad
