TPCA8128,LQ(CM

In Stock: 4,932
TPCA8128,LQ(CM - Toshiba Semiconductor and Storage - Transistors - FETs, MOSFETs - Single
REF: TPCA8128,LQ(CM Toshiba Semiconductor and Storage
TPCA8128,LQ(CM

Toshiba Semiconductor and Storage

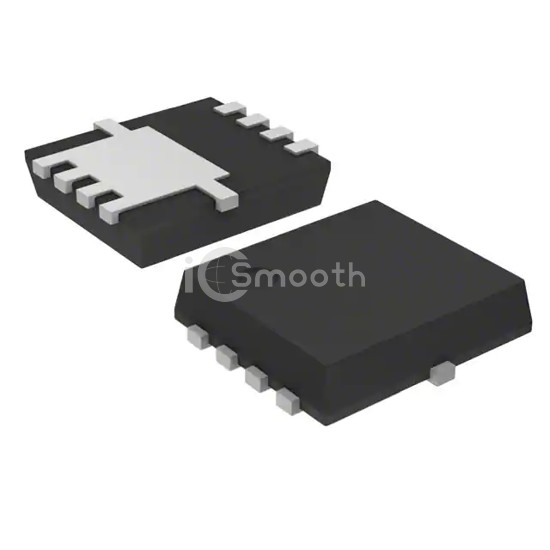

MOSFET P-CH 30V 34A 8SOP

TPCA8128,LQ(CM is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 30V 34A 8SOP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 4,932

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C34A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.8mOhm @ 17A, 10V
Vgs(th) (Max) @ Id2V @ 500µA
Gate Charge (Qg) (Max) @ Vgs115 nC @ 10 V
Vgs (Max)+20V, -25V
Input Capacitance (Ciss) (Max) @ Vds4800 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.6W (Ta), 45W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SOP Advance (5x5)
Package / Case8-PowerVDFN
