Name: TPCA8128,L1Q
Brand: Toshiba Semiconductor and Storage
SKU: TPCA8128,L1Q
Availability: InStock

REF: TPCA8128,L1Q Toshiba Semiconductor and Storage

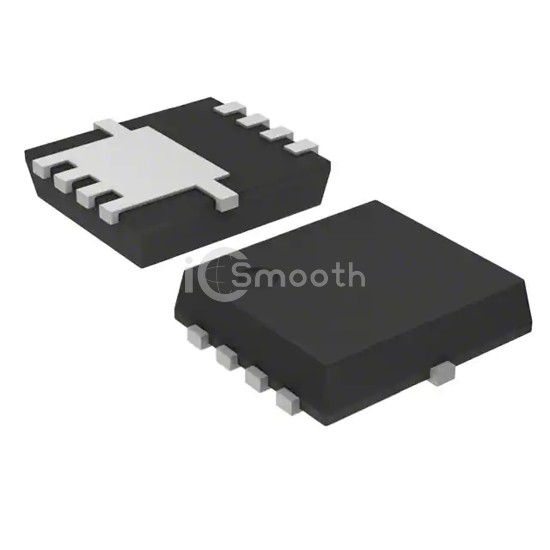

TPCA8128,L1Q

MOSFET P-CH 30V 34A 8SOP

TPCA8128,L1Q is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 30V 34A 8SOP. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 8-PowerVDFN.

Request a Quote

In Stock: 7,148

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	34A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.8mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	2V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	115 nC @ 10 V

Vgs (Max)	+20V, -25V
Input Capacitance (Ciss) (Max) @ Vds	4800 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.6W (Ta), 45W (Tc)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	8-SOP Advance (5x5)
Package / Case	8-PowerVDFN
