Name: TPCA8065-H,LQ(S
Brand: Toshiba Semiconductor and Storage
SKU: TPCA8065-H,LQ(S
Availability: InStock

REF: TPCA8065-H,LQ(S Toshiba Semiconductor and Storage

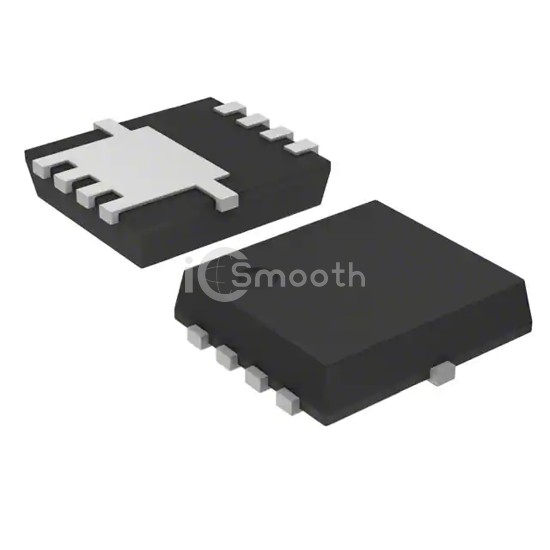

TPCA8065-H,LQ(S

Toshiba Semiconductor and Storage

MOSFET N-CH 30V 16A 8SOP

TPCA8065-H,LQ(S is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 16A 8SOP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 2,250

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	16A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	11.4mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	20 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1600 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.6W (Ta), 25W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP Advance (5x5)
Package / Case	8-PowerVDFN
