TPCA8016-H(TE12LQM

In Stock: 5,505

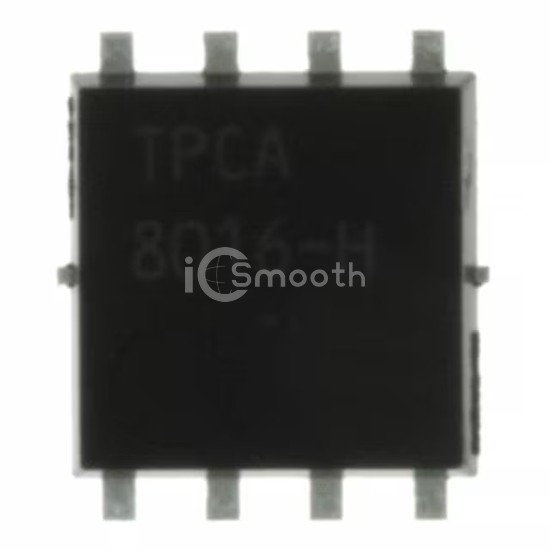

TPCA8016-H(TE12LQM - Toshiba Semiconductor and Storage - Transistors - FETs, MOSFETs - Single
REF: TPCA8016-H(TE12LQM Toshiba Semiconductor and Storage
TPCA8016-H(TE12LQM

Toshiba Semiconductor and Storage

MOSFET N-CH 60V 25A 8-SOPA

TPCA8016-H(TE12LQM is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 60V 25A 8-SOPA. Key specifications: mounting type Surface Mount, package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 5,505

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C25A (Ta)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs21mOhm @ 13A, 10V
Vgs(th) (Max) @ Id2.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs22 nC @ 10 V
Vgs (Max)-
Input Capacitance (Ciss) (Max) @ Vds1375 pF @ 10 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-
Mounting TypeSurface Mount
Supplier Device Package8-SOP Advance (5x5)
Package / Case8-PowerVDFN
