TLP5702H(D4-TP,E

In Stock: 3,610

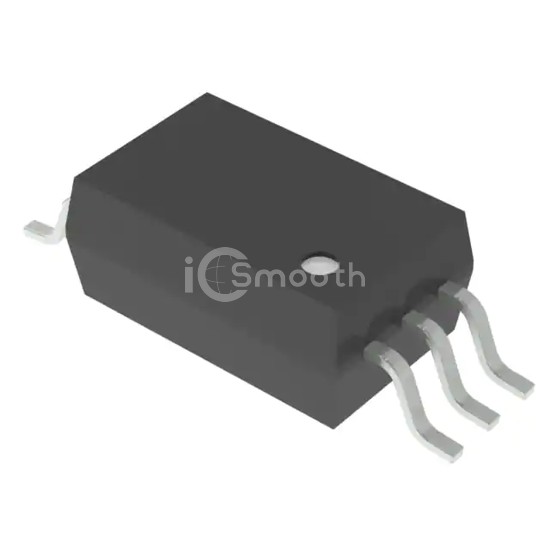

TLP5702H(D4-TP,E - Toshiba Semiconductor and Storage - Optoisolators - Logic Output
REF: TLP5702H(D4-TP,E Toshiba Semiconductor and Storage
TLP5702H(D4-TP,E

Toshiba Semiconductor and Storage

GATE DRIVE COUPLER; HIGH TEMP; R

TLP5702H(D4-TP,E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. GATE DRIVE COUPLER; HIGH TEMP; R. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 15V ~ 30V, package / case 6-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 3,610

Tiered Pricing USD
1+ $1.6000 —
10+ $1.1380 -29%
100+ $0.8587 -46%
500+ $0.7352 -54% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)50kV/µs
Input TypeDC
Output TypePush-Pull, Totem Pole
Current - Output / Channel-
Data Rate-
Propagation Delay tpLH / tpHL (Max)200ns, 200ns
Rise / Fall Time (Typ)37ns, 50ns
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)20mA
Voltage - Supply15V ~ 30V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.295", 7.50mm Width)
Supplier Device Package6-SO
