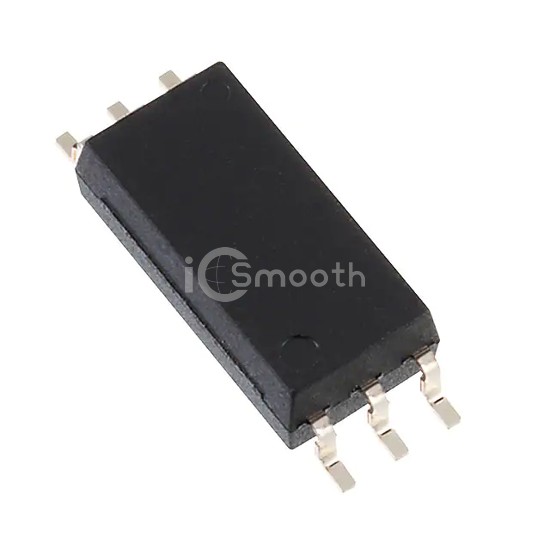

Name: TLP2768A(TP,E
Brand: Toshiba Semiconductor and Storage
SKU: TLP2768A(TP,E
Price: 1.35 USD
Availability: InStock

REF: TLP2768A(TP,E Toshiba Semiconductor and Storage

TLP2768A(TP,E

Toshiba Semiconductor and Storage

ZSOL6ICTST20M,ACTIVE,

TLP2768A(TP,E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. ZSOL6ICTST20M,ACTIVE,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 6-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,428

Tiered Pricing USD

1+ $1.3500 —

10+ $0.9560 -29%

100+ $0.7159 -47%

500+ $0.6094 -55% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	25 mA
Data Rate	20MBd

Propagation Delay tpLH / tpHL (Max)	60ns, 60ns
Rise / Fall Time (Typ)	30ns, 30ns
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SO
