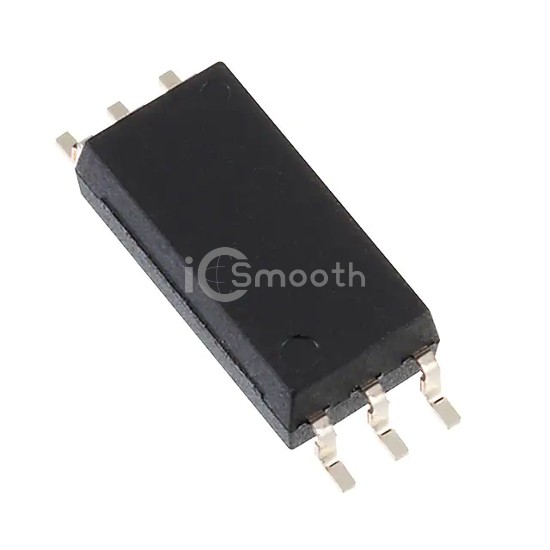

Name: TLP2767(E
Brand: Toshiba Semiconductor and Storage
SKU: TLP2767(E
Price: 2.49 USD
Availability: InStock

REF: TLP2767(E Toshiba Semiconductor and Storage

TLP2767(E

Toshiba Semiconductor and Storage

HIGH SPEED LOGIC OUTPUT OPTOCOUP

TLP2767(E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. HIGH SPEED LOGIC OUTPUT OPTOCOUP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 6-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,161

Tiered Pricing USD

1+ $2.4900 —

10+ $1.8010 -28%

125+ $1.3587 -45%

500+ $1.2066 -52%

1,000+ $1.1474 -54%

2,000+ $1.0973 -56%

5,000+ $1.0427 -58% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Input Type	AC, DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	50MBd

Propagation Delay tpLH / tpHL (Max)	20ns, 20ns
Rise / Fall Time (Typ)	2ns, 1ns
Voltage - Forward (Vf) (Typ)	2.1V (Max)
Current - DC Forward (If) (Max)	15mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SO
