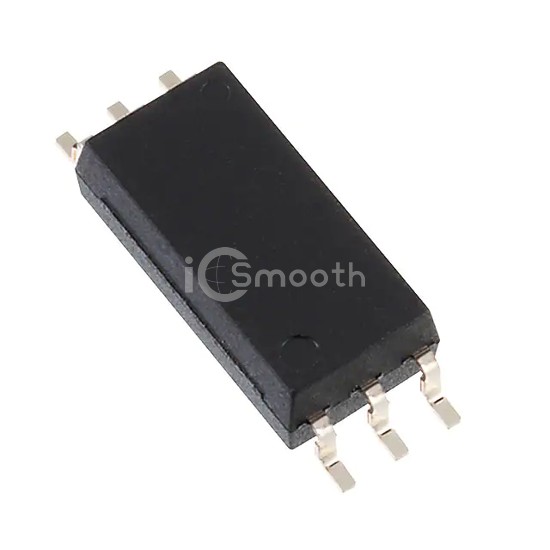

Name: TLP2761(D4,E
Brand: Toshiba Semiconductor and Storage
SKU: TLP2761(D4,E
Price: 1.19 USD
Availability: InStock

REF: TLP2761(D4,E Toshiba Semiconductor and Storage

TLP2761(D4,E

Toshiba Semiconductor and Storage

HIGH SPEED LOGIC OUTPUT OPTOCOUP

TLP2761(D4,E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. HIGH SPEED LOGIC OUTPUT OPTOCOUP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 6-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 8,152

Tiered Pricing USD

1+ $1.1900 —

10+ $0.8390 -29%

125+ $0.6093 -49%

500+ $0.5295 -56%

1,000+ $0.4984 -58%

2,000+ $0.4719 -60%

5,000+ $0.4431 -63%

10,000+ $0.4252 -64% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	AC, DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	15MBd

Propagation Delay tpLH / tpHL (Max)	80ns, 80ns
Rise / Fall Time (Typ)	3ns, 3ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	10mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SO
