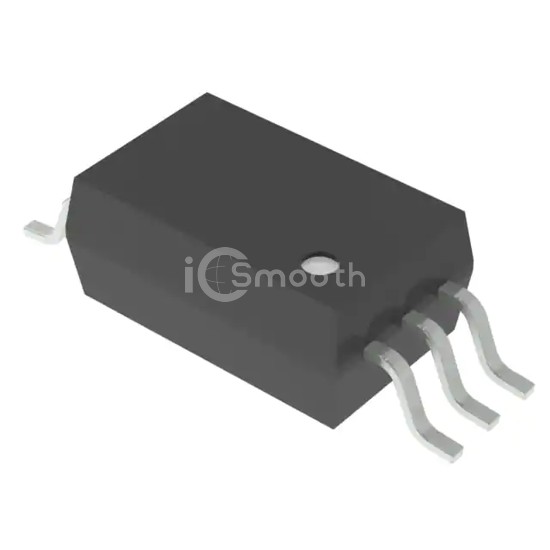

Name: TLP2719(TP,E
Brand: Toshiba Semiconductor and Storage
SKU: TLP2719(TP,E
Price: 1.63 USD
Availability: InStock

REF: TLP2719(TP,E Toshiba Semiconductor and Storage

TLP2719(TP,E

Toshiba Semiconductor and Storage

OPTOCOUPLER HI SPEED LOGIC OUTPU

TLP2719(TP,E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. OPTOCOUPLER HI SPEED LOGIC OUTPU. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - supply 4.5V ~ 20V, package / case 6-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 7,738

Tiered Pricing USD

1+ $1.6300 —

10+ $1.1600 -29%

100+ $0.8763 -46%

500+ $0.7508 -54% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	10kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	8 mA
Data Rate	1MBd

Propagation Delay tpLH / tpHL (Max)	800ns, 800ns
Rise / Fall Time (Typ)	-
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	4.5V ~ 20V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SO
