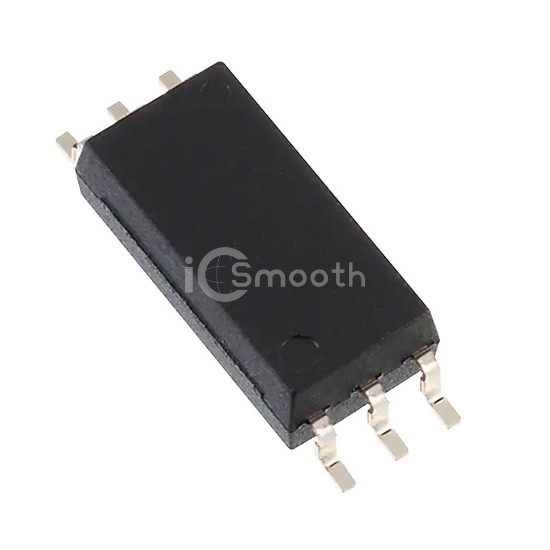

Name: TLP2704(D4,E
Brand: Toshiba Semiconductor and Storage
SKU: TLP2704(D4,E
Price: 1.40 USD
Availability: InStock

REF: TLP2704(D4,E Toshiba Semiconductor and Storage

TLP2704(D4,E

Toshiba Semiconductor and Storage

HIGH SPEED LOGIC OUTPUT COUPLER;

TLP2704(D4,E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. HIGH SPEED LOGIC OUTPUT COUPLER;. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 30V, package / case 6-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 6,152

Tiered Pricing USD

1+ $1.4000 —

10+ $0.9900 -29%

125+ $0.7251 -48%

500+ $0.6332 -55%

1,000+ $0.5974 -57%

2,000+ $0.5670 -60%

5,000+ $0.5338 -62%

10,000+ $0.5131 -63% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	15 mA
Data Rate	-

Propagation Delay tpLH / tpHL (Max)	400ns, 550ns
Rise / Fall Time (Typ)	-
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	4.5V ~ 30V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SO
