Name: TLP2662(F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP2662(F)
Price: 1.89 USD
Availability: InStock

REF: TLP2662(F) Toshiba Semiconductor and Storage

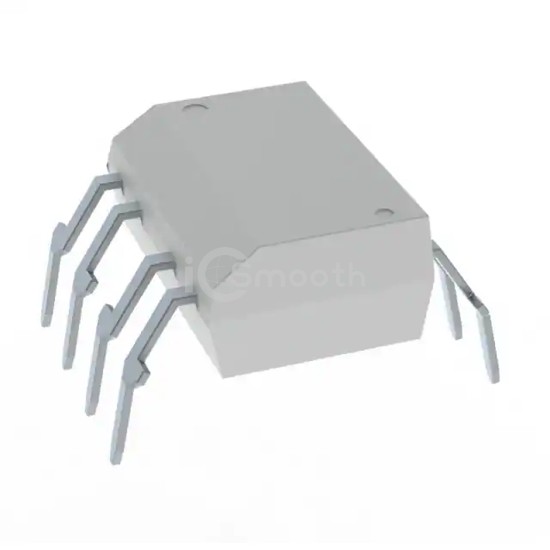

TLP2662(F)

Toshiba Semiconductor and Storage

OPTOISO 5KV 2CH OPN COL 8DIP

TLP2662(F) is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. OPTOISO 5KV 2CH OPN COL 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,494

Tiered Pricing USD

1+ $1.8900 —

50+ $1.1096 -41%

100+ $1.0295 -46%

500+ $0.8866 -53%

1,000+ $0.8400 -56%

2,000+ $0.8004 -58%

5,000+ $0.7574 -60%

10,000+ $0.7305 -61% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	25 mA
Data Rate	10MBd

Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	12ns, 3ns
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
