TLP2631TP1F

In Stock: 5,963

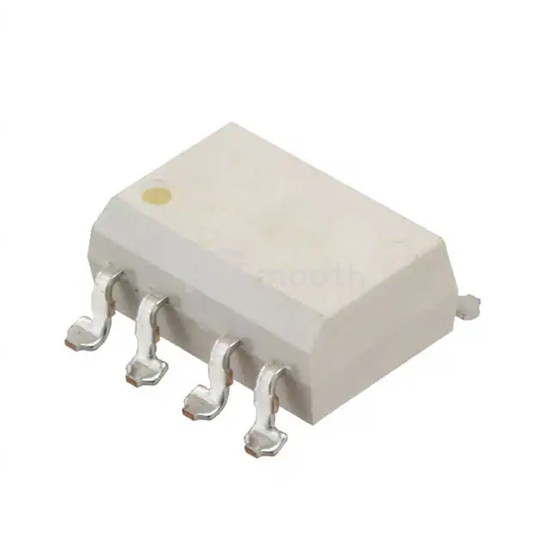

TLP2631TP1F - Toshiba Semiconductor and Storage - Optoisolators - Logic Output
REF: TLP2631TP1F Toshiba Semiconductor and Storage
TLP2631TP1F

Toshiba Semiconductor and Storage

OPTOISO 2.5KV 2CH OPEN COLL 8SMD

TLP2631TP1F is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. OPTOISO 2.5KV 2CH OPEN COLL 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 5,963

Specifications

18 parameters
Product StatusObsolete
Number of Channels2
Inputs - Side 1/Side 22/0
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)1kV/µs
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel16 mA
Data Rate10MBd
Propagation Delay tpLH / tpHL (Max)75ns, 75ns
Rise / Fall Time (Typ)30ns, 30ns
Voltage - Forward (Vf) (Typ)1.65V
Current - DC Forward (If) (Max)20mA
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
