Name: TLP2631(LF5,F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP2631(LF5,F)
Availability: InStock

REF: TLP2631(LF5,F) Toshiba Semiconductor and Storage

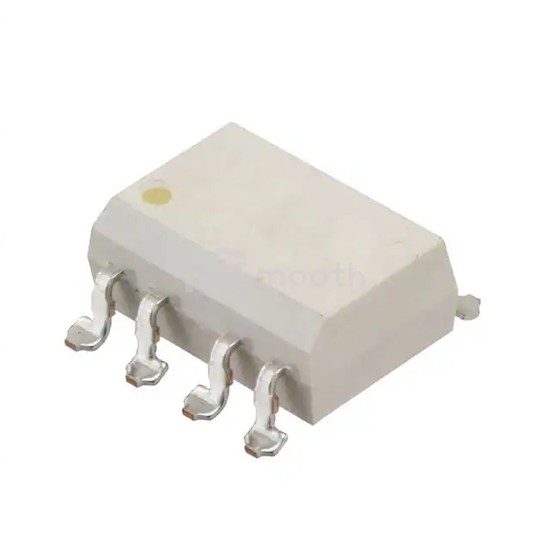

TLP2631(LF5,F)

X36 PB PHOTOCOUPLER SMD BULK JAP

TLP2631(LF5,F) is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. X36 PB PHOTOCOUPLER SMD BULK JAP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 8,715

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	1kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	16 mA
Data Rate	10MBd

Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	30ns, 30ns
Voltage - Forward (Vf) (Typ)	1.65V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
