Name: TLP250HF(F)
Brand: Toshiba Semiconductor and Storage
SKU: TLP250HF(F)
Availability: InStock

REF: TLP250HF(F) Toshiba Semiconductor and Storage

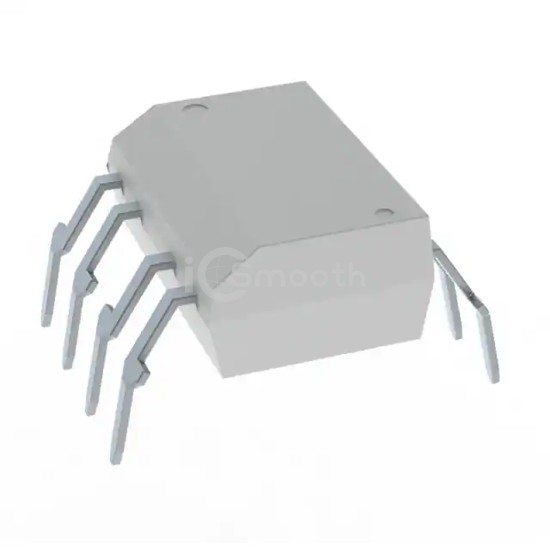

TLP250HF(F)

OPTOCOUPLER 8DIP

TLP250HF(F) is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. OPTOCOUPLER 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - supply 10V ~ 30V, package / case 8-DIP (0.300", 7.62mm).

Request a Quote

In Stock: 5,444

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	40kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	2 A
Data Rate	-

Propagation Delay tpLH / tpHL (Max)	500ns, 500ns
Rise / Fall Time (Typ)	50ns, 50ns
Voltage - Forward (Vf) (Typ)	1.57V
Current - DC Forward (If) (Max)	5mA
Voltage - Supply	10V ~ 30V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	8-DIP (0.300", 7.62mm)
Supplier Device Package	8-DIP
