Name: TLP2270(TP4,E
Brand: Toshiba Semiconductor and Storage
SKU: TLP2270(TP4,E
Price: 2.11 USD
Availability: InStock

REF: TLP2270(TP4,E Toshiba Semiconductor and Storage

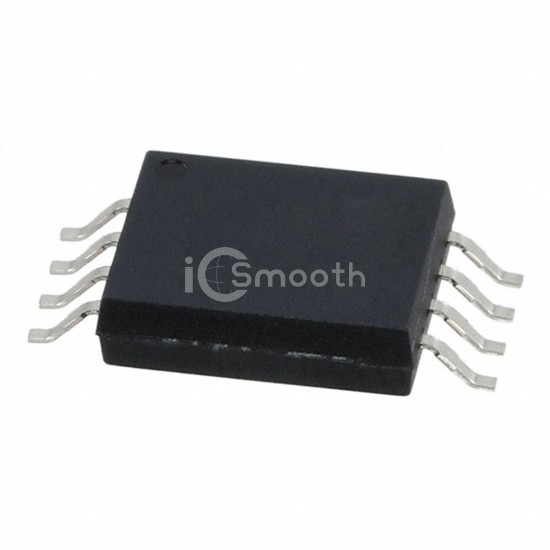

TLP2270(TP4,E

Toshiba Semiconductor and Storage

PHOTOCOUPLER HI-SPEED LOW INPUT

TLP2270(TP4,E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. PHOTOCOUPLER HI-SPEED LOW INPUT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 8-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 3,292

Tiered Pricing USD

1+ $2.1100 —

10+ $1.8840 -11%

25+ $1.7988 -15%

50+ $1.7374 -18%

100+ $1.6778 -20%

250+ $1.6022 -24%

500+ $1.5473 -27% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	20MBd

Propagation Delay tpLH / tpHL (Max)	60ns, 60ns
Rise / Fall Time (Typ)	1.3ns, 1ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	8mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package	8-SO
