Name: TLP2261(LF4,E
Brand: Toshiba Semiconductor and Storage
SKU: TLP2261(LF4,E
Price: 2.82 USD
Availability: InStock

REF: TLP2261(LF4,E Toshiba Semiconductor and Storage

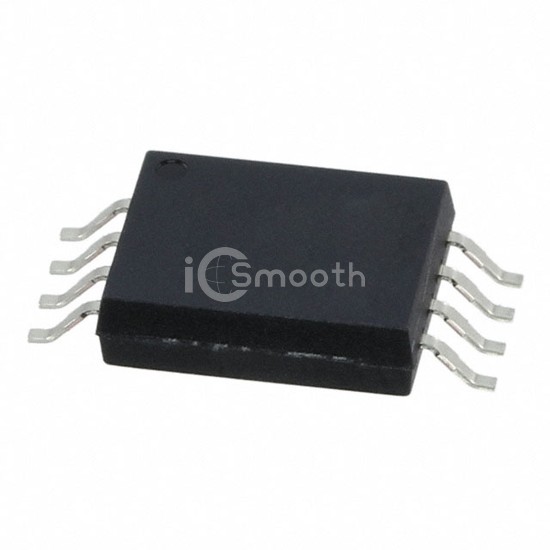

TLP2261(LF4,E

Toshiba Semiconductor and Storage

HIGH SPEED LOGIC OUTPUT OPTOCOUP

TLP2261(LF4,E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. HIGH SPEED LOGIC OUTPUT OPTOCOUP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 8-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,255

Tiered Pricing USD

1+ $2.8200 —

75+ $1.6312 -42%

150+ $1.5280 -46%

525+ $1.3794 -51%

1,050+ $1.3144 -53%

2,025+ $1.2620 -55%

5,025+ $1.2020 -57% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	15MBd

Propagation Delay tpLH / tpHL (Max)	80ns, 80ns
Rise / Fall Time (Typ)	3ns, 3ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	10mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package	8-SO
