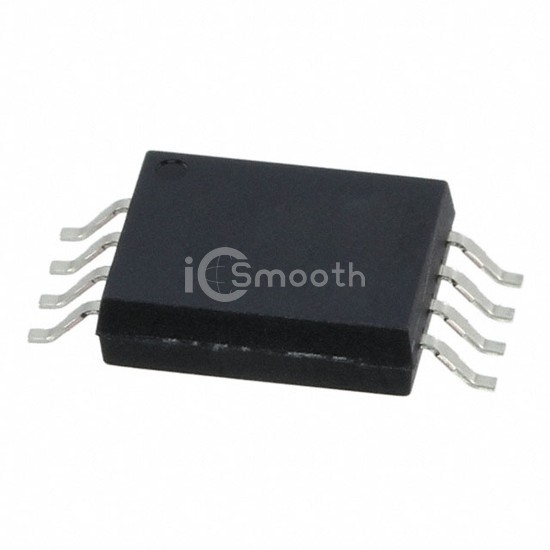

Name: TLP2261(D4-TP4,E
Brand: Toshiba Semiconductor and Storage
SKU: TLP2261(D4-TP4,E
Price: 1.28 USD
Availability: InStock

REF: TLP2261(D4-TP4,E Toshiba Semiconductor and Storage

TLP2261(D4-TP4,E

Toshiba Semiconductor and Storage

HIGH SPEED LOGIC OUTPUT OPTOCOUP

TLP2261(D4-TP4,E is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. HIGH SPEED LOGIC OUTPUT OPTOCOUP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 8-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 9,930

Tiered Pricing USD

1,500+ $1.2849 —

3,000+ $1.2344 -4%

4,500+ $1.2086 -6%

7,500+ $1.1794 -8% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	15MBd

Propagation Delay tpLH / tpHL (Max)	80ns, 80ns
Rise / Fall Time (Typ)	3ns, 3ns
Voltage - Forward (Vf) (Typ)	1.5V
Current - DC Forward (If) (Max)	10mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package	8-SO
