TLP2200F

Toshiba Semiconductor and Storage

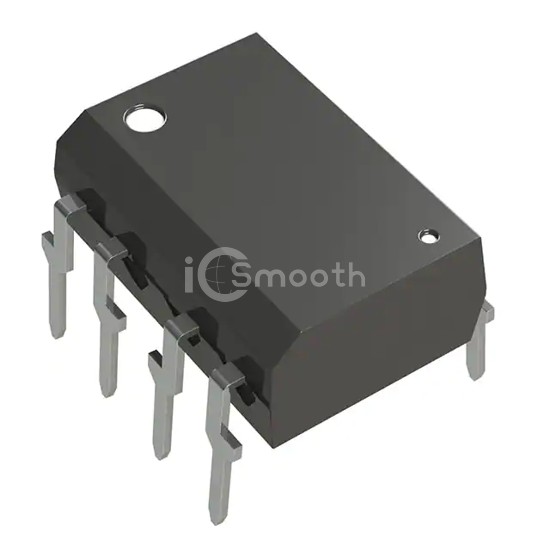

OPTOISO 2.5KV TRI-STATE 8DIP

TLP2200F is a Optoisolators - Logic Output manufactured by Toshiba Semiconductor and Storage. OPTOISO 2.5KV TRI-STATE 8DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 20V, package / case 8-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 3,765

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)1kV/µs
Input TypeDC
Output TypeTri-State
Current - Output / Channel25 mA
Data Rate2.5MBd
Propagation Delay tpLH / tpHL (Max)400ns, 400ns
Rise / Fall Time (Typ)35ns, 20ns
Voltage - Forward (Vf) (Typ)1.55V
Current - DC Forward (If) (Max)10mA
Voltage - Supply4.5V ~ 20V
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
