Name: TKR74F04PB,LXGQ
Brand: Toshiba Semiconductor and Storage
SKU: TKR74F04PB,LXGQ
Price: 4.75 USD
Availability: InStock

REF: TKR74F04PB,LXGQ Toshiba Semiconductor and Storage

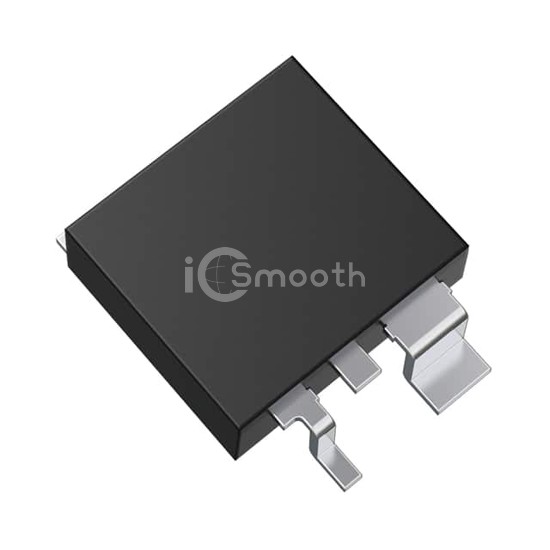

TKR74F04PB,LXGQ

Toshiba Semiconductor and Storage

MOSFET N-CH 40V 250A TO220SM

TKR74F04PB,LXGQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 40V 250A TO220SM. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 3

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	250A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	0.74mOhm @ 125A, 10V
Vgs(th) (Max) @ Id	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	227 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	14200 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	375W (Tc)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	TO-220SM(W)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
