Name: TK60P03M1,RQ(S
Brand: Toshiba Semiconductor and Storage
SKU: TK60P03M1,RQ(S
Availability: InStock

REF: TK60P03M1,RQ(S Toshiba Semiconductor and Storage

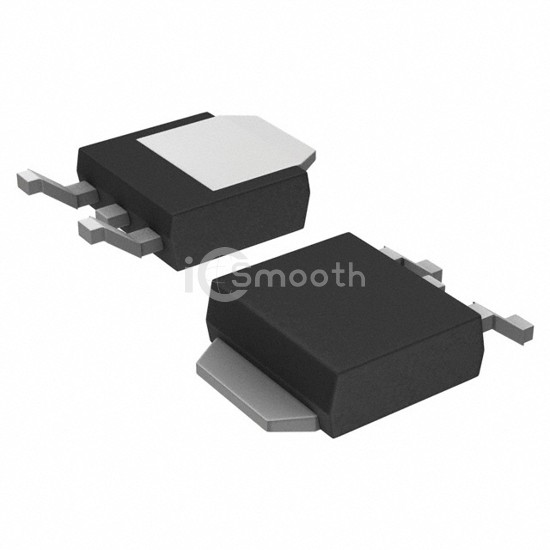

TK60P03M1,RQ(S

MOSFET N-CH 30V 60A DPAK

TK60P03M1,RQ(S is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 60A DPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 8,445

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	60A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.4mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.3V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	40 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2700 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	63W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
