Name: TK56E12N1,S1X
Brand: Toshiba Semiconductor and Storage
SKU: TK56E12N1,S1X
Price: 1.52 USD
Availability: InStock

REF: TK56E12N1,S1X Toshiba Semiconductor and Storage

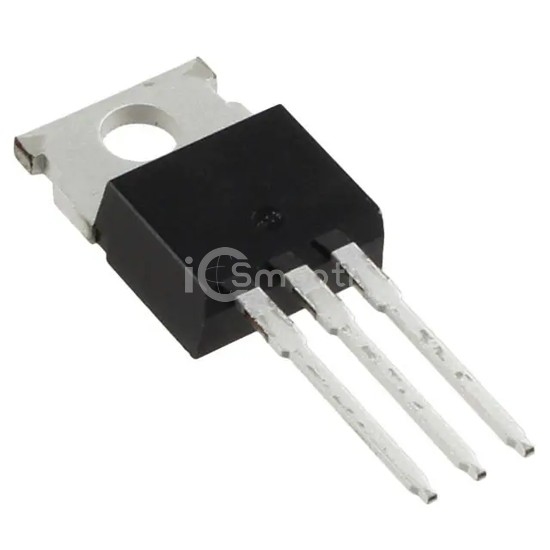

TK56E12N1,S1X

Toshiba Semiconductor and Storage

MOSFET N CH 120V 56A TO-220

TK56E12N1,S1X is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N CH 120V 56A TO-220. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 3,227

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	120 V
Current - Continuous Drain (Id) @ 25°C	56A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7mOhm @ 28A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	69 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4200 pF @ 60 V
FET Feature	-
Power Dissipation (Max)	168W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
