Name: TK560P60Y,RQ
Brand: Toshiba Semiconductor and Storage
SKU: TK560P60Y,RQ
Price: 1.39 USD
Availability: InStock

REF: TK560P60Y,RQ Toshiba Semiconductor and Storage

TK560P60Y,RQ

Toshiba Semiconductor and Storage

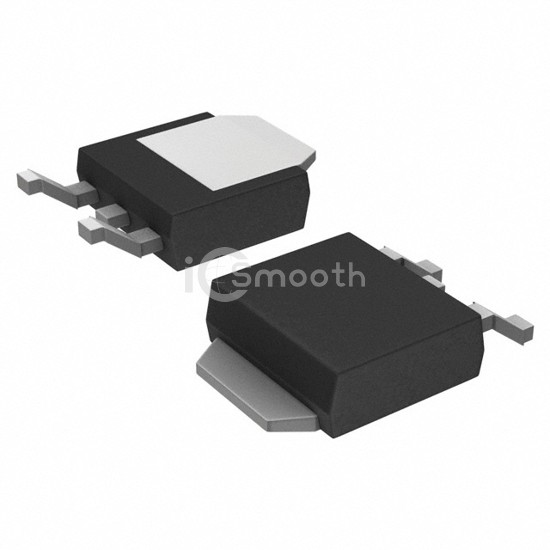

MOSFET N-CHANNEL 600V 7A DPAK

TK560P60Y,RQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CHANNEL 600V 7A DPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 7,504

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	560mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id	4V @ 240µA
Gate Charge (Qg) (Max) @ Vgs	14.5 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	380 pF @ 300 V
FET Feature	-
Power Dissipation (Max)	60W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
