Name: TK4R1A10PL,S4X
Brand: Toshiba Semiconductor and Storage
SKU: TK4R1A10PL,S4X
Price: 2.14 USD
Availability: InStock

REF: TK4R1A10PL,S4X Toshiba Semiconductor and Storage

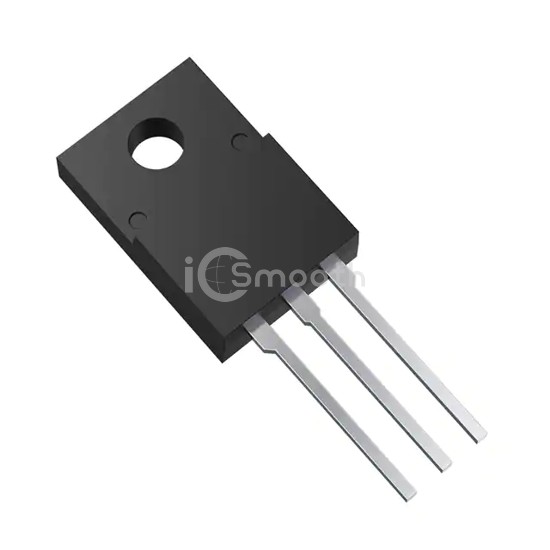

TK4R1A10PL,S4X

Toshiba Semiconductor and Storage

X35 PB-F POWER MOSFET TRANSISTOR

TK4R1A10PL,S4X is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. X35 PB-F POWER MOSFET TRANSISTOR. Key specifications: mounting type Through Hole, operating temperature 175°C, package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 9,611

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.1mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	104 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6320 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	54W (Tc)
Operating Temperature	175°C
Mounting Type	Through Hole
Supplier Device Package	TO-220SIS
Package / Case	TO-220-3 Full Pack
