Name: TK45P03M1,RQ(S
Brand: Toshiba Semiconductor and Storage
SKU: TK45P03M1,RQ(S
Availability: InStock

REF: TK45P03M1,RQ(S Toshiba Semiconductor and Storage

TK45P03M1,RQ(S

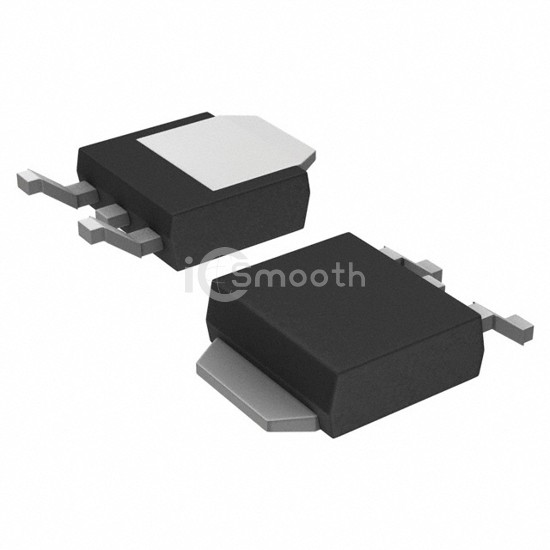

MOSFET N-CH 30V 45A DPAK

TK45P03M1,RQ(S is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 45A DPAK. Key specifications: mounting type Surface Mount, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 6,300

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	45A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9.7mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id	2.3V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	25 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1500 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
