Name: TK42A12N1,S4X
Brand: Toshiba Semiconductor and Storage
SKU: TK42A12N1,S4X
Price: 1.56 USD
Availability: InStock

REF: TK42A12N1,S4X Toshiba Semiconductor and Storage

TK42A12N1,S4X

Toshiba Semiconductor and Storage

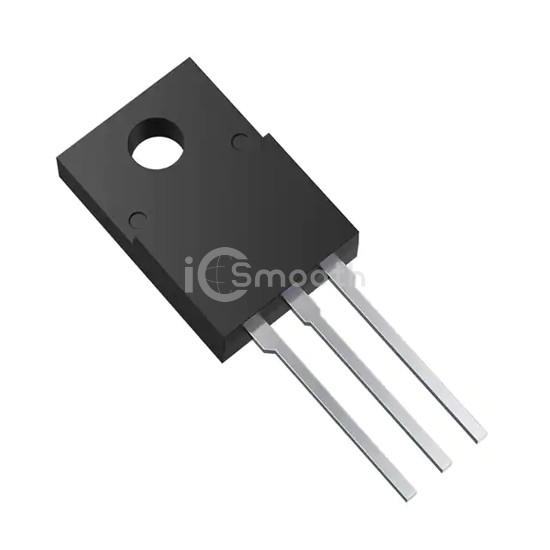

MOSFET N-CH 120V 42A TO220SIS

TK42A12N1,S4X is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 120V 42A TO220SIS. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 7,543

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	120 V
Current - Continuous Drain (Id) @ 25°C	42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	9.4mOhm @ 21A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	52 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3100 pF @ 60 V
FET Feature	-
Power Dissipation (Max)	35W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220SIS
Package / Case	TO-220-3 Full Pack
