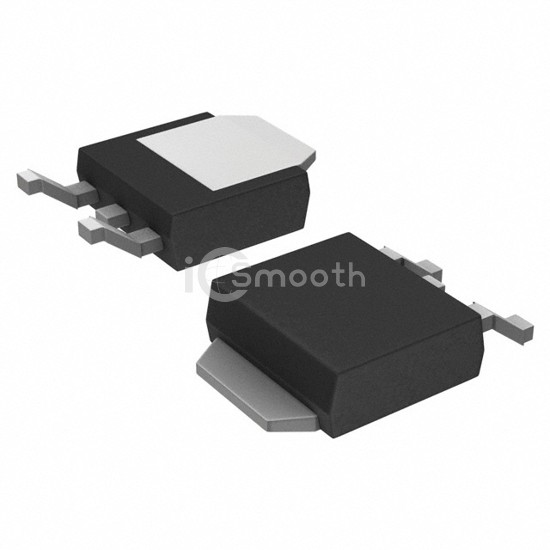

Name: TK40P03M1(T6RDS-Q)
Brand: Toshiba Semiconductor and Storage
SKU: TK40P03M1(T6RDS-Q)
Availability: InStock

REF: TK40P03M1(T6RDS-Q) Toshiba Semiconductor and Storage

TK40P03M1(T6RDS-Q)

Toshiba Semiconductor and Storage

MOSFET N-CH 30V 40A DPAK

TK40P03M1(T6RDS-Q) is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 40A DPAK. Key specifications: mounting type Surface Mount, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 2,947

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	40A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10.8mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.3V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	17.5 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1150 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
