Name: TK3R1P04PL,RQ
Brand: Toshiba Semiconductor and Storage
SKU: TK3R1P04PL,RQ
Price: 1.10 USD
Availability: InStock

REF: TK3R1P04PL,RQ Toshiba Semiconductor and Storage

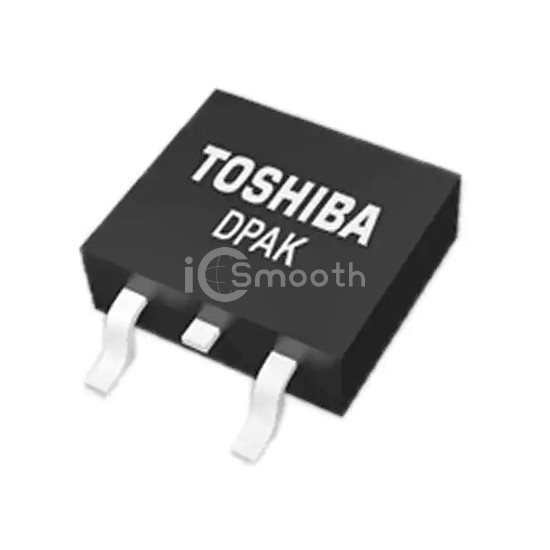

TK3R1P04PL,RQ

Toshiba Semiconductor and Storage

MOSFET N-CHANNEL 40V 58A DPAK

TK3R1P04PL,RQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CHANNEL 40V 58A DPAK. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 16,864

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	58A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.1mOhm @ 29A, 10V
Vgs(th) (Max) @ Id	2.4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	60 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4670 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	87W (Tc)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	DPAK
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
