Name: TK3A60DA(Q,M)
Brand: Toshiba Semiconductor and Storage
SKU: TK3A60DA(Q,M)
Price: 1.26 USD
Availability: InStock

REF: TK3A60DA(Q,M) Toshiba Semiconductor and Storage

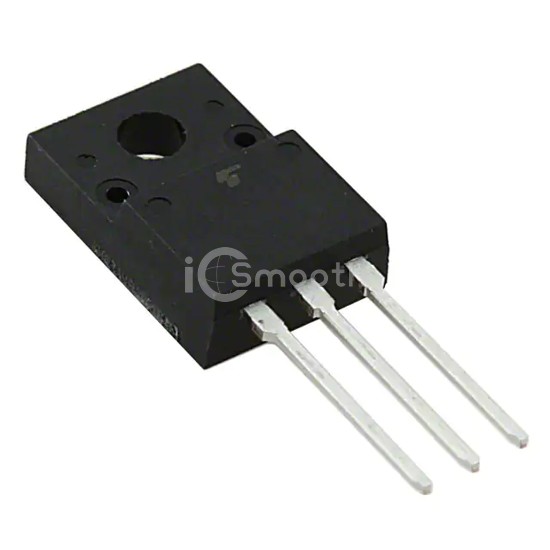

TK3A60DA(Q,M)

Toshiba Semiconductor and Storage

MOSFET N-CH 600V 2.5A TO220SIS

TK3A60DA(Q,M) is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 600V 2.5A TO220SIS. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 6

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.8Ohm @ 1.3A, 10V
Vgs(th) (Max) @ Id	4.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	9 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	380 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	30W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220SIS
Package / Case	TO-220-3 Full Pack
