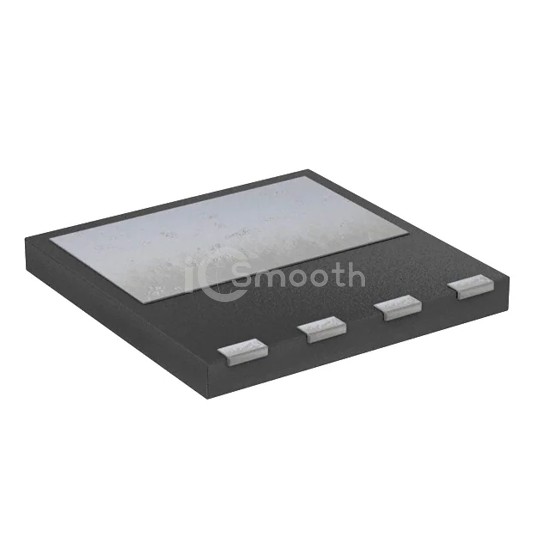

Name: TK31V60W,LVQ
Brand: Toshiba Semiconductor and Storage
SKU: TK31V60W,LVQ
Price: 4.95 USD
Availability: InStock

REF: TK31V60W,LVQ Toshiba Semiconductor and Storage

TK31V60W,LVQ

Toshiba Semiconductor and Storage

MOSFET N-CH 600V 30.8A 4DFN

TK31V60W,LVQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 600V 30.8A 4DFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 4-VSFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,783

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	30.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	98mOhm @ 15.4A, 10V
Vgs(th) (Max) @ Id	3.7V @ 1.5mA
Gate Charge (Qg) (Max) @ Vgs	86 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3000 pF @ 300 V
FET Feature	Super Junction
Power Dissipation (Max)	240W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-DFN-EP (8x8)
Package / Case	4-VSFN Exposed Pad
