Name: TK31E60W,S1VX
Brand: Toshiba Semiconductor and Storage
SKU: TK31E60W,S1VX
Price: 6.74 USD
Availability: InStock

REF: TK31E60W,S1VX Toshiba Semiconductor and Storage

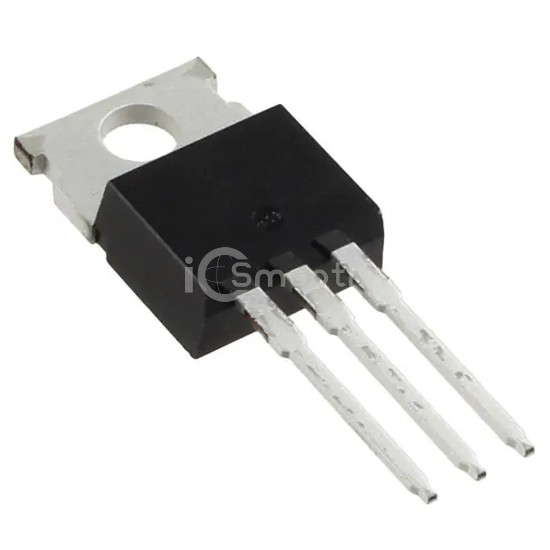

TK31E60W,S1VX

Toshiba Semiconductor and Storage

MOSFET N-CH 600V 30.8A TO220

TK31E60W,S1VX is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 600V 30.8A TO220. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 1,976

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	30.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	88mOhm @ 15.4A, 10V
Vgs(th) (Max) @ Id	3.7V @ 1.5mA
Gate Charge (Qg) (Max) @ Vgs	86 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3000 pF @ 300 V
FET Feature	Super Junction
Power Dissipation (Max)	230W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
