Name: TK2Q60D(Q)
Brand: Toshiba Semiconductor and Storage
SKU: TK2Q60D(Q)
Price: 0.67 USD
Availability: InStock

REF: TK2Q60D(Q) Toshiba Semiconductor and Storage

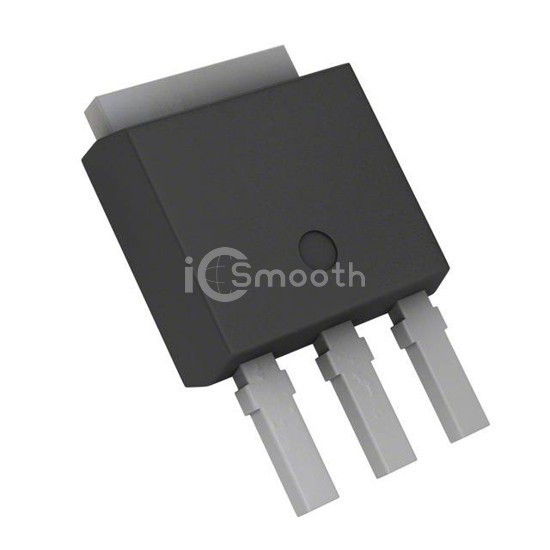

TK2Q60D(Q)

Toshiba Semiconductor and Storage

MOSFET N-CH 600V 2A PW-MOLD2

TK2Q60D(Q) is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 600V 2A PW-MOLD2. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 3,776

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.3Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	4.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	7 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	280 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	60W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PW-MOLD2
Package / Case	TO-251-3 Stub Leads, IPak
