Name: TK25S06N1L,LXHQ
Brand: Toshiba Semiconductor and Storage
SKU: TK25S06N1L,LXHQ
Price: 0.98 USD
Availability: InStock

REF: TK25S06N1L,LXHQ Toshiba Semiconductor and Storage

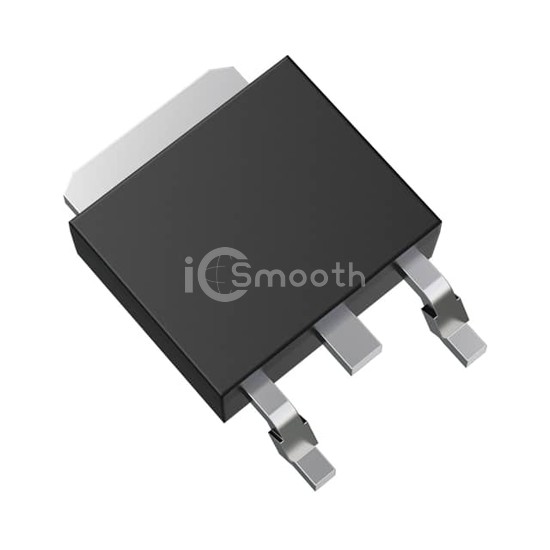

TK25S06N1L,LXHQ

Toshiba Semiconductor and Storage

MOSFET N-CH 60V 25A DPAK

TK25S06N1L,LXHQ is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 60V 25A DPAK. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 7,886

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	25A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	36.8mOhm @ 12.5A, 4.5V
Vgs(th) (Max) @ Id	2.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	855 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	57W (Tc)
Operating Temperature	175°C
Mounting Type	Surface Mount
Supplier Device Package	DPAK+
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
